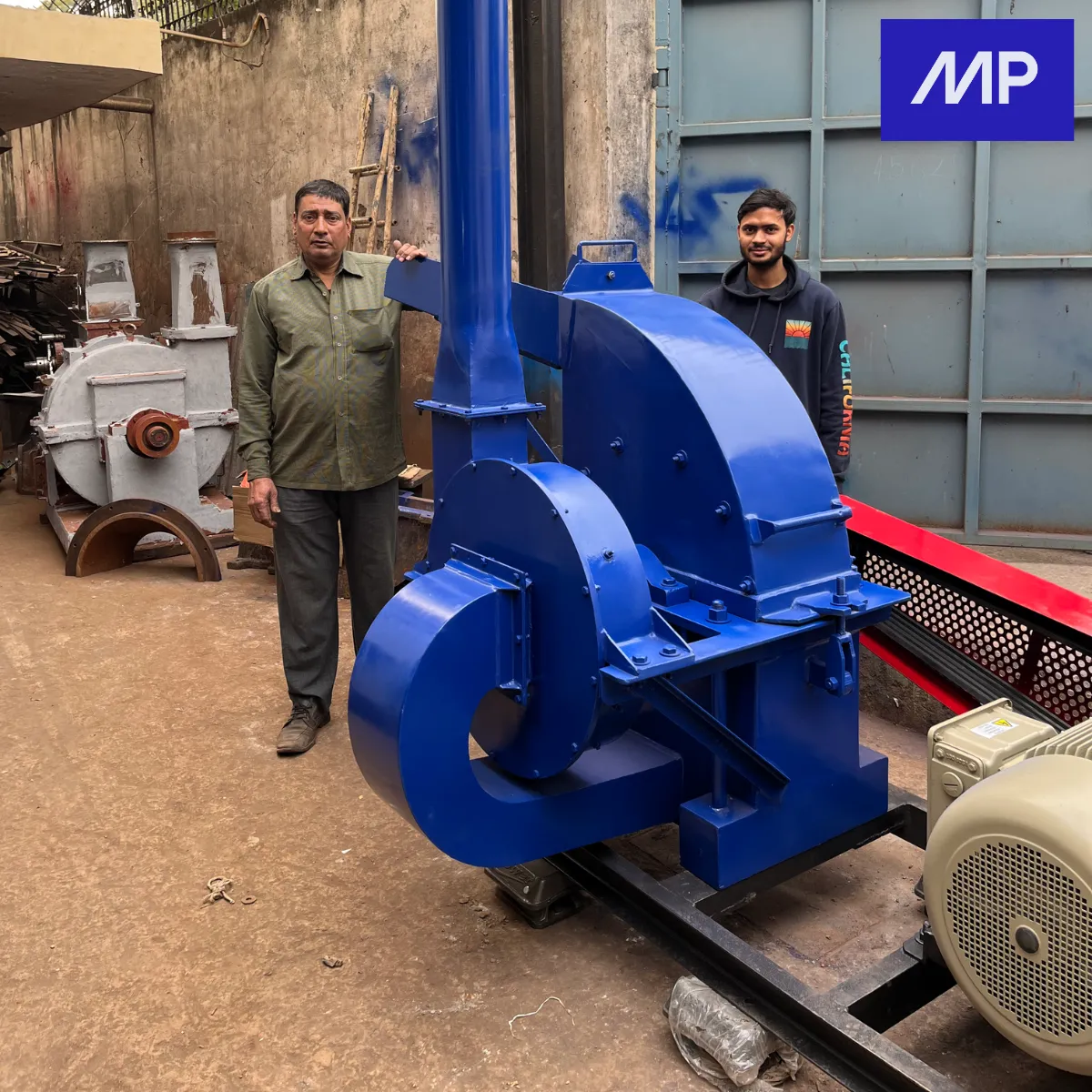

The MODERN Hammer Mill is a high efficiency machine designed to process a wide range of materials with precision and reliability. Reduces solids to a particle size range of up to 100 mesh — suitable for both coarse and fine grinding applications.
Trusted across industries that demand consistent particle size reduction and reliable throughput.
Six model sizes to match your exact throughput and fineness requirements — from lab-scale to full industrial production.
| Machine Model | 12A | 16A | 20A | 24A | 32A | 42A |
|---|---|---|---|---|---|---|
| HP (Motor) | 5 – 10 | 15 – 20 | 30 – 40 | 40 – 50 | 60 – 70 | 100 – 125 |
| CapacityPer Hour | 40 – 50Kg/Hr | 80 – 100Kg/Hr | 150 – 200Kg/Hr | 200 – 300Kg/Hr | 500 – 600Kg/Hr | 800 – 1000Kg/Hr |
| RPM | 3800 | 3200 | 3200 | 2800 | 2800 | 1800 |
High-speed impact grinding with precision screen filtration and integrated dust control — delivering clean, consistent output every time.
High-speed rotating hammers strike the incoming material inside the grinding chamber, breaking it into smaller particles through repeated impact.
A precision perforated screen allows only particles of the desired size to pass through, while oversized material remains for further grinding.
The integrated airflow system continuously conveys the processed material out of the chamber, ensuring smooth operation and minimizing dust accumulation.
The Hammer Mill uses high-speed impact grinding to efficiently reduce material size. A precision screen ensures uniform particle size, while the integrated airflow system enables smooth material discharge and cleaner operation.
This combination delivers consistent output, high efficiency, and reliable performance across a wide range of applications.
Designed around the needs of real production environments — efficient, reliable, and easy to maintain.
Optimized hammer design ensures faster and uniform particle reduction across every batch.
Suitable for minerals, chemicals, food products, and agro materials across diverse industries.
Heavy-duty body with wear-resistant liners built for long-term, continuous industrial use.
Interchangeable screens allow different particle sizes to be achieved — up to 100 mesh.
Easy-access design enables quick cleaning and rapid hammer replacement with minimal downtime.
Positive suction system maintains clean working conditions at all times during operation.
Tailor your Hammer Mill to the exact demands of your material, environment, and production volume.
Contact & non-contact parts in Cast Iron (CI), Carbon Steel (CS), and SS 304 — SS 316 available on request.
Hammers, liners, and impact components from graded alloy steel and hardened materials for extended service life.
Feed size up to 50mm, output up to 100 mesh, capacity from 20 kg/hr all the way to 1000 kg/hr.
Heavy-duty build with a dynamically balanced rotor for smooth, low-vibration operation under continuous loads.
Our engineers will help you select the ideal model and configuration.
