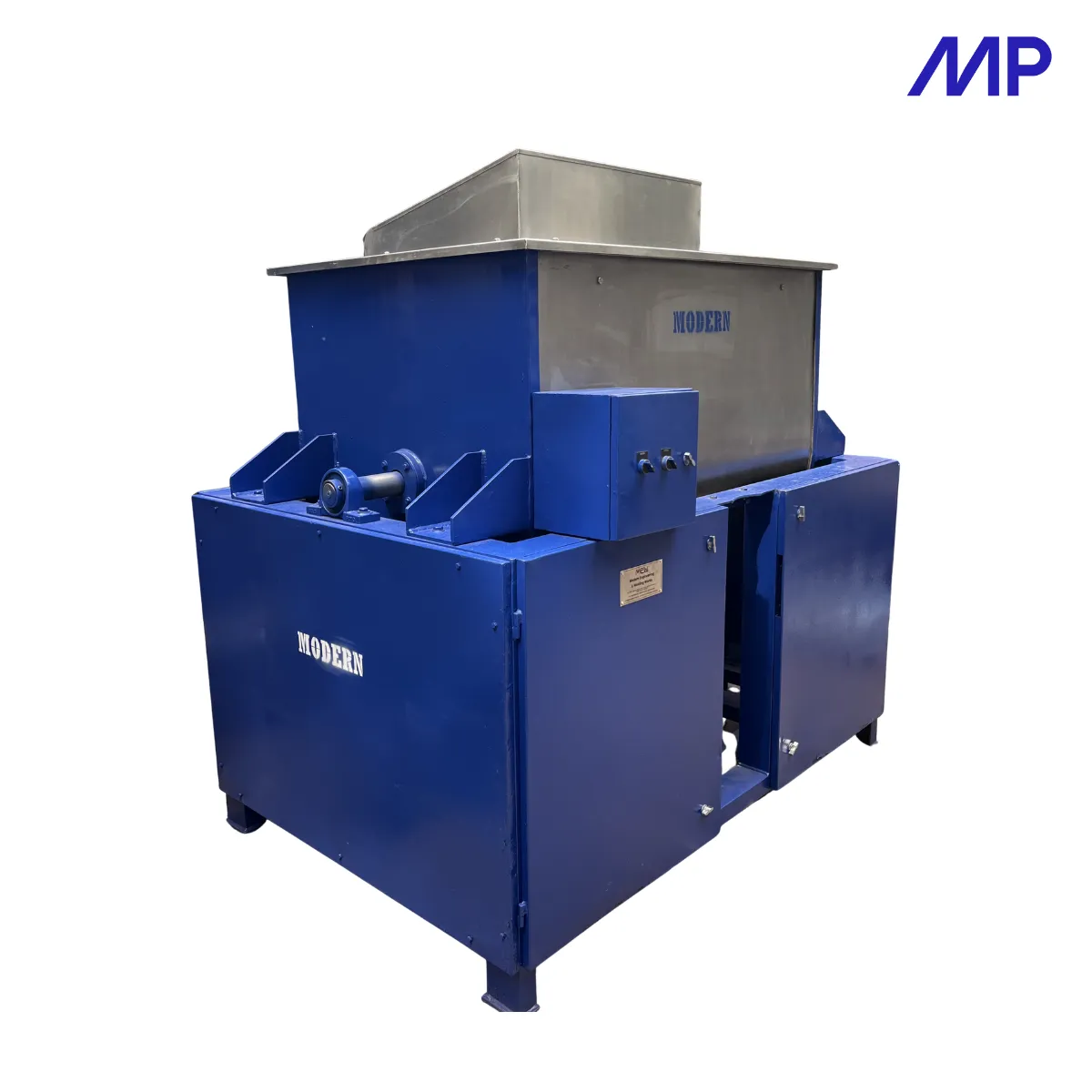

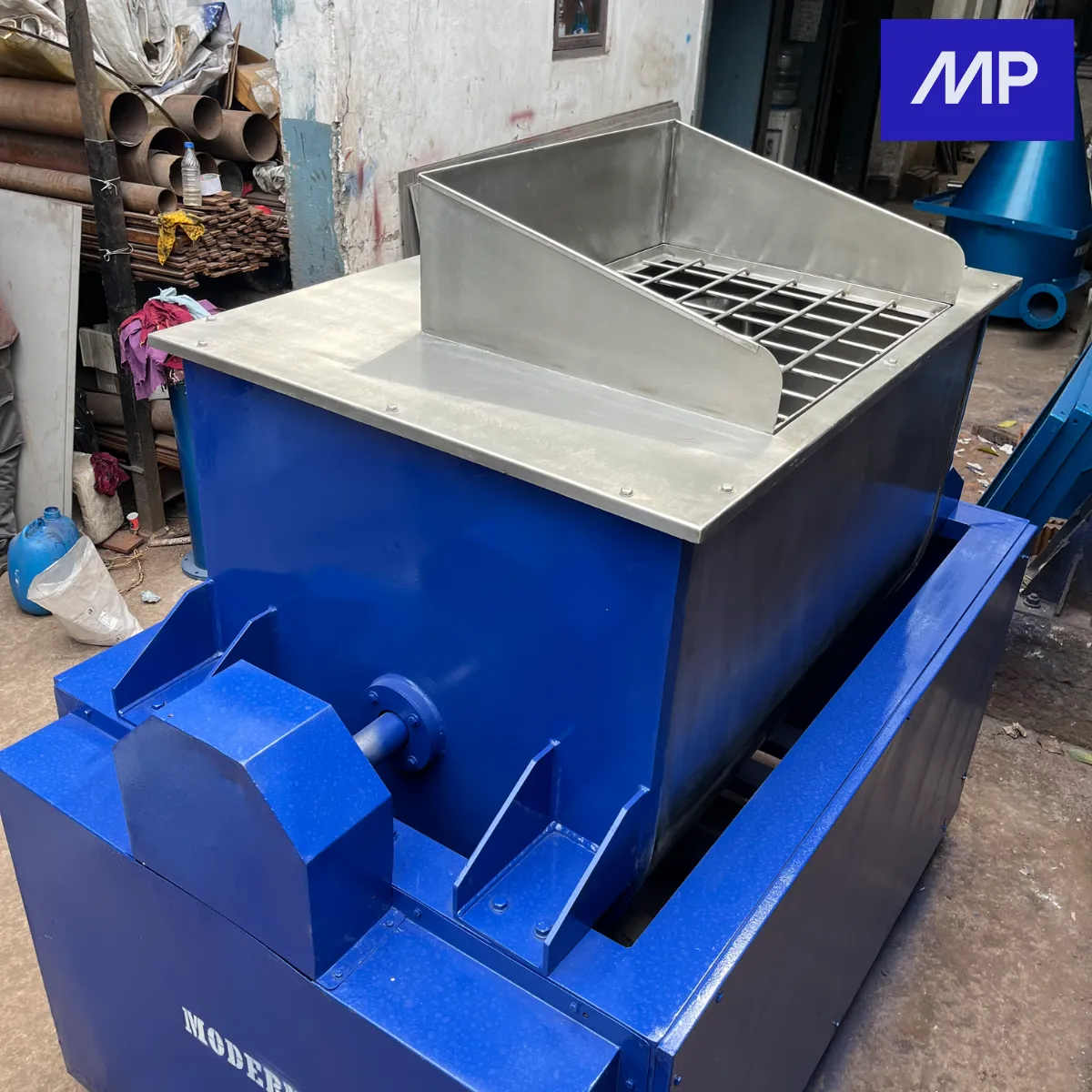

The MODERN Ribbon Blender is designed for fast and uniform mixing of dry powders, granules, and free-flowing materials. The specially designed inner and outer ribbons create a counter-flow mixing action that ensures excellent homogeneity throughout the batch. Engineered for industrial process reliability and long service life.
Trusted across industries that demand consistent particle size reduction and reliable throughput.
Five model sizes engineered to deliver fast and uniform mixing with excellent batch consistency — from small to large industrial scales.
| Machine Model | 50A | 100A | 200A | 500A | 1000A |
|---|---|---|---|---|---|
| HP (Motor) | 3 – 5 | 5 – 10 | 10 – 15 | 15 – 20 | 25 – 30 |
| CapacityPer Batch | 50Kg | 100Kg/Hr | 200Kg/Hr | 500Kg/Hr | 1000Kg/Hr |
High-efficiency mixing powered by dynamic inner and outer ribbon counter-flows.
Powders, granules, and processing additives are safely loaded into the processing mixing chamber trough via the specialized top feeding arrangement.
The uniquely calibrated inner and outer helical ribbons rotate simultaneously, moving bulk materials in structural opposite directions to achieve exceptionally rapid and uniform mixing.
Once the desired processing time cycle is safely reached, your mixed material cleanly exits via the automated bottom outlet valve assembly for final packaging operations.
The Ribbon Blender operates on an advanced counter-flow mechanism. The outer ribbon moves material from the sides toward the center, while the inner ribbon moves material from the center toward the sides, creating an intense radial and axial mixing action.
This simultaneous flow ensures that all ingredients are uniformly distributed within minutes, making it highly reliable for even delicate products and complex cross-ingredient batch runs.
Heavy-duty construction engineered to deliver exceptional batch homogeneity and lower maintenance downtime.
Specially designed inner and outer ribbons ensure rapid blending and excellent batch homogeneity.
Delivers consistent mixing quality with uniform distribution of ingredients throughout the batch.
Heavy-duty fabricated body and ribbon assembly built for continuous industrial operation and long service life.
Suitable for mixing powders, granules, spices, chemicals, pharmaceuticals, minerals, and food products.
Simple design with easy access to internal components, reducing cleaning time and maintenance effort.
Available with jacketed construction, liquid spray systems, and multiple configuration options to suit specific processes.
Tailor your industrial blending setup to meet exact structural material demands, plant floor configurations, and regulatory criteria.
Contact and non-contact parts available in Carbon Steel (CS), SS 304, and SS 316 to fully suit food, chemical, or pharmaceutical hygiene grades.
Flexible manufacturing layouts supporting operational capacities scaling seamlessly from small 50 Kg configurations up to 1000 Kg units.
Multiple engineered options including robust slide gates, sealed manual butterfly valves, or automated pneumatic discharge systems.
Heavy-duty ribbon assemblies coupled with rigid support frames guarantee vibration management and low wear under peak loads.
Our engineers will help you select the ideal model and customized internal setup.
